Features
Specially designed formula approved by UL. Flexible and flame
-retardant. Free from toxic heavy metal and harmful substances
such as PBB's, PBBO's, PBBE's. Offering low shrinking temperature.

Various
Zero halogen
Low smoke generation if burning
Operating temperature : -55°C to +125°C
Minimum shrink temperature: 70°C
Minimum fully recovery temperature: 100°C
Approvals: UL 224 125°C VW-1 600 V
Material: No PBB's, PBBO's, or PBBE's. Lead content < 10 ppm.
Standard colors: Black, red, blue, yellow, green, white. Other colors available on request.
Shrink ratio: 2:1 (3:1 and 4:1 available)

Technical Data

Property	Test Method	Typical Data
Operating temperature	UL224	-55C to+125°C
Tensile  strength	ASTM D 2671	>14 MPa
Elongation  at  break	ASTM D 2671	400%
Longitudinal   shrinkage	UL224	0±5%
Eccentricity	ASTM D 2671	<30%
Flammability	VW-1	Pass
Dielectric strength	IEC 243	>20 KV/mm
Volume resistance	IEC 93	1014Ω.cm
Copper  stability	UL224	Pass
Heat aging / Tensile strength/ Ultimate elongation	158C/168h	Unaged/>12 MPa/>350%

Dimensions/2X

Size	As Supplied(mm)		After Recovery(mm)		Standard length m/spool
DM-T125 inch. (D)	Inside Diameter Min. (D)	Wall Thickness Nominal. (T)	Inside Diameter Max. (d)	Wall Thickness Nominal. (t)
Special Type	0.5	0.15	0.3	0.22	200
	0.6	0.15	0.4	0.22	200
	0.8	0.18	0.5	0.22	200
3/64	1.2	0.18	0.65	0.30	200
1/16	1.6	0.25	0.85	0.33	200
3/32	2.4	0.25	1.2	0.36	200
1/8	3.2	0.25	1.6	0.44	200
3/16	4.8	0.25	2.4	0.55	100
1/4	6.4	0.30	3.2	0.55	100
3/8	9.5	0.35	4.8	0.55	100
1/2	12.7	0.35	6.4	0.65	100
5/8	16	0.40	8	0.69	100
3/4	19.1	0.40	9.5	0.89	100
1	25.4	0.45	12.7	0.90	50
11/4	32	0.45	16	0.90	50
11/2	38.1	0.50	20	1.00	50
2	50.8	0.50	25.4	1.00	25
3	76.2	0.55	40	1.20	25
4	100	0.55	50.8	1.30	25
5	120	0.55	63	1.40	25
6	150	0.55	75	1.40	25
7	180	0.55	90	1.40	25
8	210	0.55	105	1.40	25
9	230	0.55	115	1.40	25
10	250	0.55	125	1.40	25

Dimensions/3X

Size	As Supplied(mm)		After Recovery(mm)		Standard length  m/spool
DM-T125 3X inch. (D)	Inside Diameter Min. (D)	Wall Thickness Nominal. (T)	Inside Diameter Max. (d)	Wall Thickness Nominal. (t)
1/16	1.5/0.5	0.15	0.5	0.45	200
1/8	3/1	0.18	1.0	0.55	200
3/16	4.5/1.5	0.20	1.5	0.60	100
1/4	6/2	0.22	2	0.65	100
3/8	9/3	0.30	3	0.75	50
1/2	12/4	0.35	4	0.80	50
5/8	15/5	0.35	5	0.85	50
3/4	18/6	0.40	6	0.89	50
1	24/8	0.45	8	1.00	25
11/4	30/10	0.45	10	1.15	25
11/2	39/13	0.50	13	1.25	25
2	50/16	0.75	16	2.3	1
21/2	60/20	0.80	20	2.4	1
3	70/23	0.85	23	2.4	1
4	100/33	0.85	33	2.4	1

Dimensions/4X

Size	As Supplied(mm)	After Recovery(mm)		Standard length    (m)
DM-T125 4X inch. (D)	Inside Diameter Min. (D)	Inside Diameter Max. (d)	Wall Thickness Nominal. (t)
3/16	4/1	1	0.70	1 or 1.22
1/4	6/1.5	1.5	0.78	1 or 1.22
3/8	8/2	2	0.80	1 or 1.22
1/2	12/3	3	0.90	1 or 1.22
5/8	16/4	4	1.00	1 or 1.22
3/4	20/5	5	1.50	1 or 1.22
1	25/6.5	6.5	1.60	1 or 1.22
11/4	32/8	8	1.70	1 or 1.22
11/2	40/10	10	1.70	1 or 1.22
2	51/14	14	1.70	1 or 1.22
3	70/23	6	1.70	1 or 1.22
4	102/26.7	26.7	1.70	1 or 1.22
41/2	115/36.8	36.8	1.70	1 or 1.22

*Spools as standards. 1 m. or 1,22 m. sticks, special spool lengths or cut pieces available on request.
Special sizes (up to 7 inches) and other special features available on request

Applications

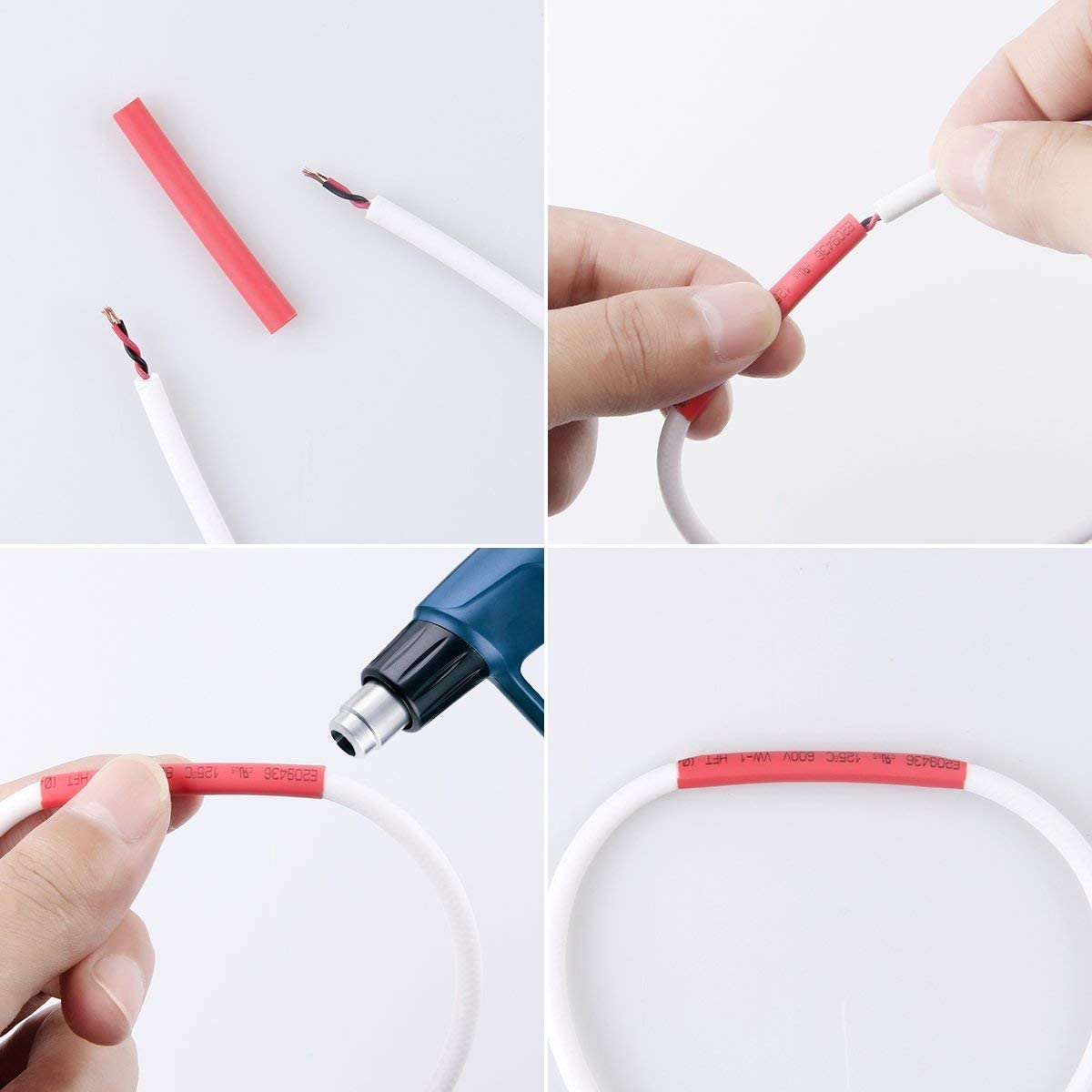

Perfect for numerous electronic, automotive and consumer goods. Suitable for electrical insulation, protection
of components, strain relief, cable bounding, identification.

Services
? Cut to any length
? Print your own logo
? Different ways of packaging (box, bag)
