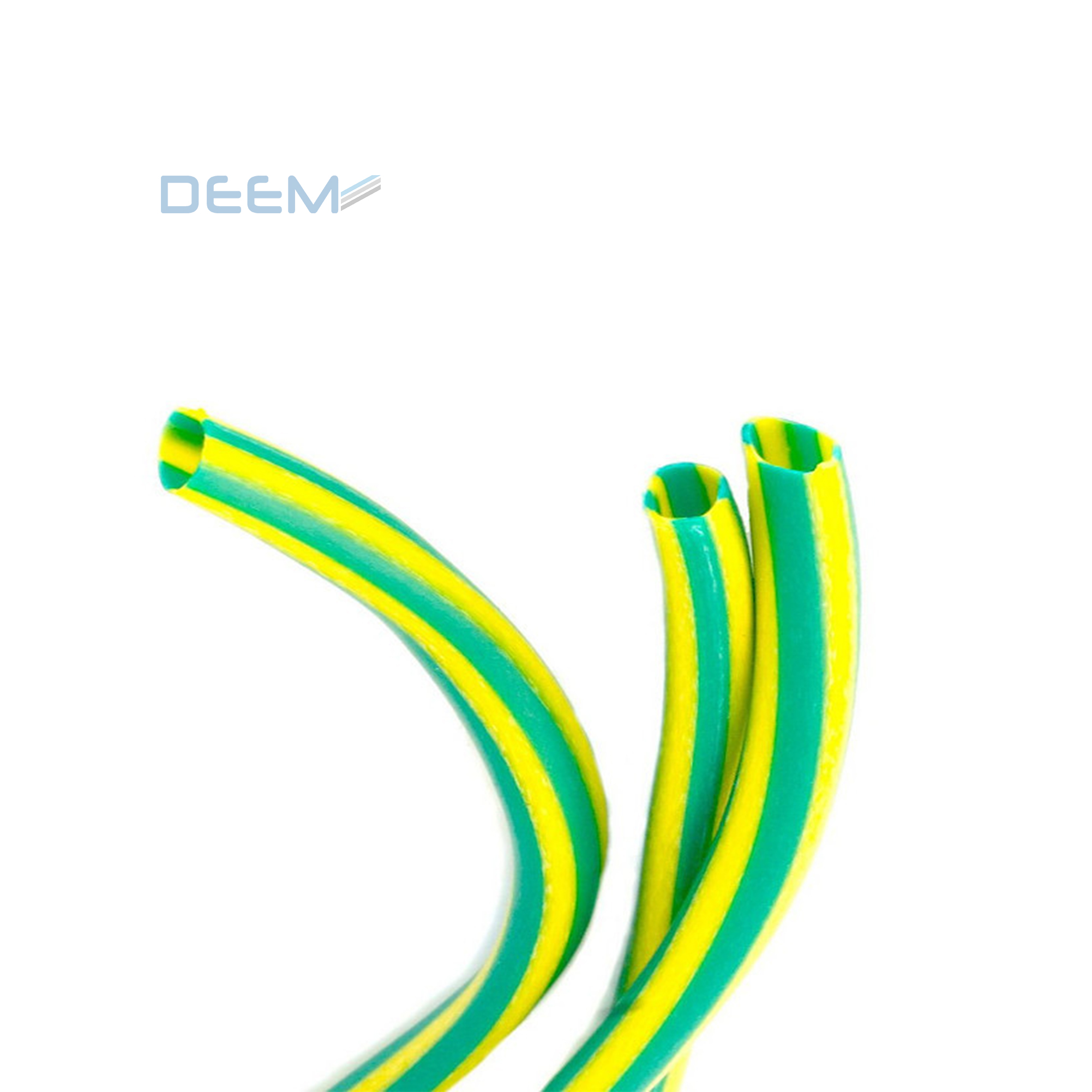

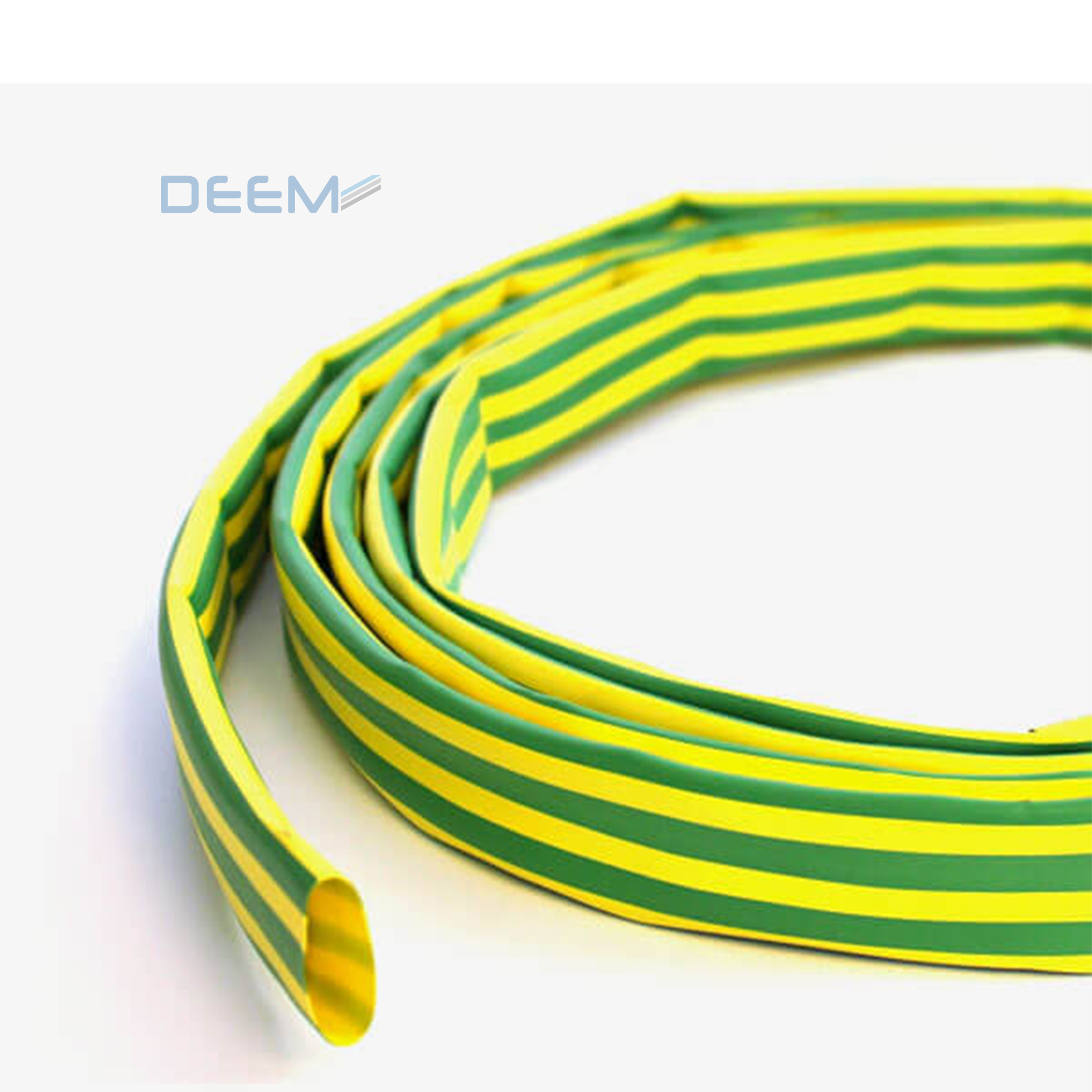

Yellow&Green High Quality Polyolefin Tubing
- BrandDEEM
- TypeDM-YG125
Applications
Used to identify electrical grounding as well as protecting and insulating wires harnesses
of light cabling. Easy to mark for additional identification.
Features
Resistant to common fluids and solvents. Flexible and
flame retardant. Free from harmful substances as PBB's,
PBBO's, PBBE's and toxic.
Various
Operating temperature: -55°C to +125°C
Minimum shrink temperature: 70°C
Minimum fully recovery temperature: 120°C
Standard color: Yellow & Green
shrink ratio: 2:1 3:1
Technical Data
Property
Test Method
Typical Data
Operating temperature
UL224
-55°C to+125℃
Tensile strength
ASTM D 2671
>14 MPa
Elongation at break
ASTM D 2671
400%
Longitudinal shrinkage
UL224
0±5%
Eccentricity
ASTM D 2671
<30%
Flammability
VW-1
Pass
Dielectric strength
ASTM D 150
20 KV/mm
Volume resistance
ASTM D 876
1014Ω.cm
Copper corrossion
UL224
Pass
Heat aging / Tensile strength / Ultimate elongation
158C/168h
Unaged/>12 MPa/>350%
Heat shock (250°C/4hrs.)
ASTM D 2671
No Cracking
Cold bend test(-55°C/4hrs.)
ASTM D 2671
No Cracking
Water absorption
ASTM D 570
0.15%
Dimensions/2X
Size
As Supplied
(mm)
After Recovery (mm)
Standard length
m/spool
Inch
(D)
Inside Diamete
Min. (D)
Inside Diamete
Max. (d)
Wall Thickness
Nominal.(t)
3/64
1.2
0.65
0.30
200
1/16
1.6
0.85
0.33
200
3/32
2.4
1.2
0.36
200
1/8
3.2
1.6
0.44
200
3/16
4.8
2.4
0.55
200
1/4
6.4
3.2
0.55
100
3/8
9.5
4.8
0.55
100
1/2
12.7
6.4
0.65
100
5/8
16
8
0.69
100
3/4
19.1
9.5
0.89
100
1
25.4
12.7
0.90
50
11/4
32
16
0.90
50
11/2
38.1
19.1
1.00
50
2
50.8
25.4
1.00
25
3
76.2
38.1
1.20
25
4
100
50.8
1.60
25
5
120
63
2.00
25
6
150
75
2.00
25
7
180
90
2.10
25
Dimensions/3X
Size
After Recovery (mm)
Standard length
m/spool
Inch
(D)
Inside Diameter
Min. (D)
Inside Diameter
Max. (d
Wall Thicknes
Nominal. (t)
1/8
3.2
1.0
0.50
200
3/16
4.8
1.5
0.55
100
1/4
6.4
2.0
0.55
100
3/8
9.5
3.0
0.60
50
1/2
12.7
4.0
0.65
50
3/4
19.1
6.0
0.85
50
1
25.4
8.0
1.00
50
11/2
39
13
1.20
50
*Spools as standards. 1 m. or 1,22 m. sticks, special spool lengths or cut pieces available on request.
Special sizes (up to 7 inches) and other special features available on request
