Applications

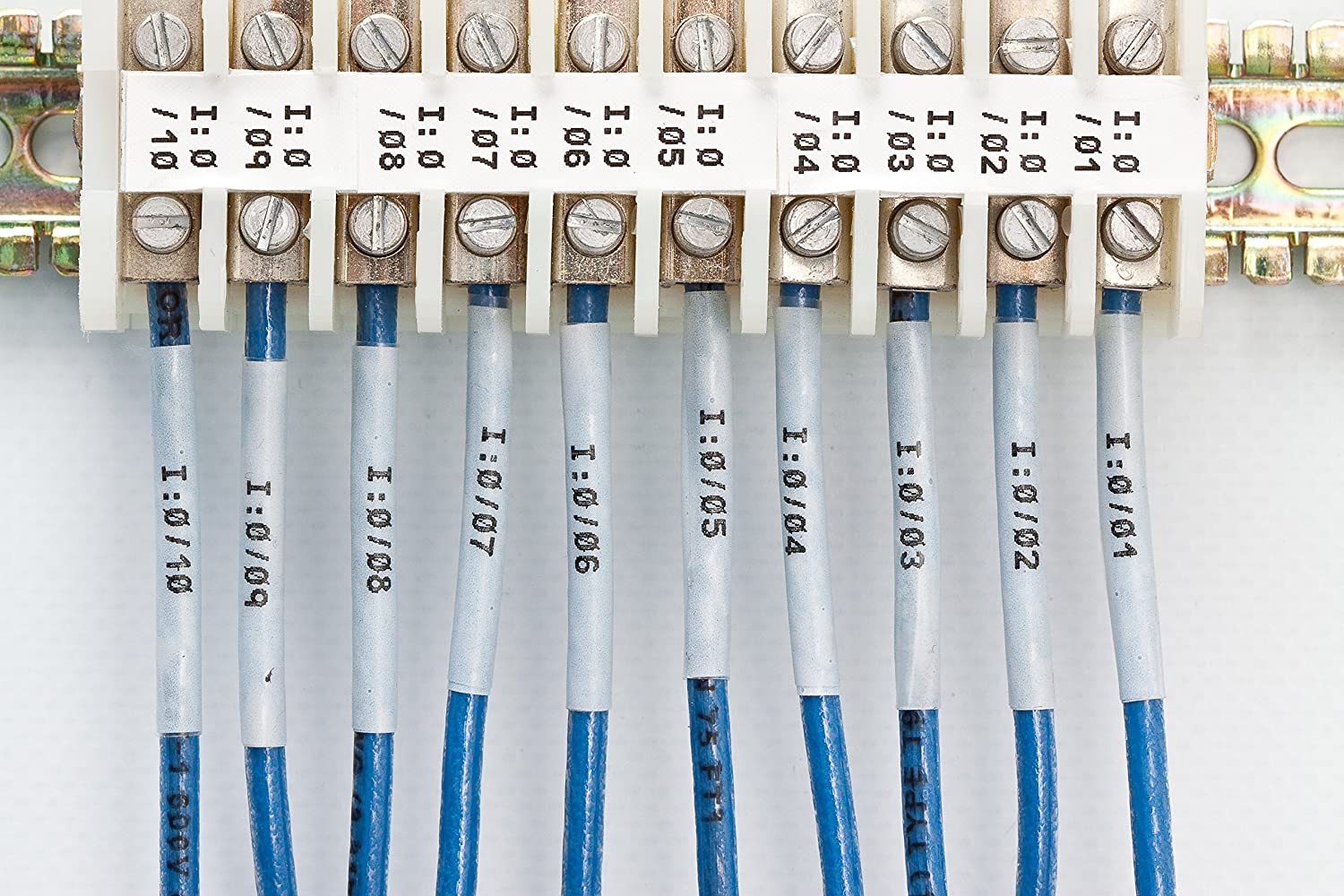

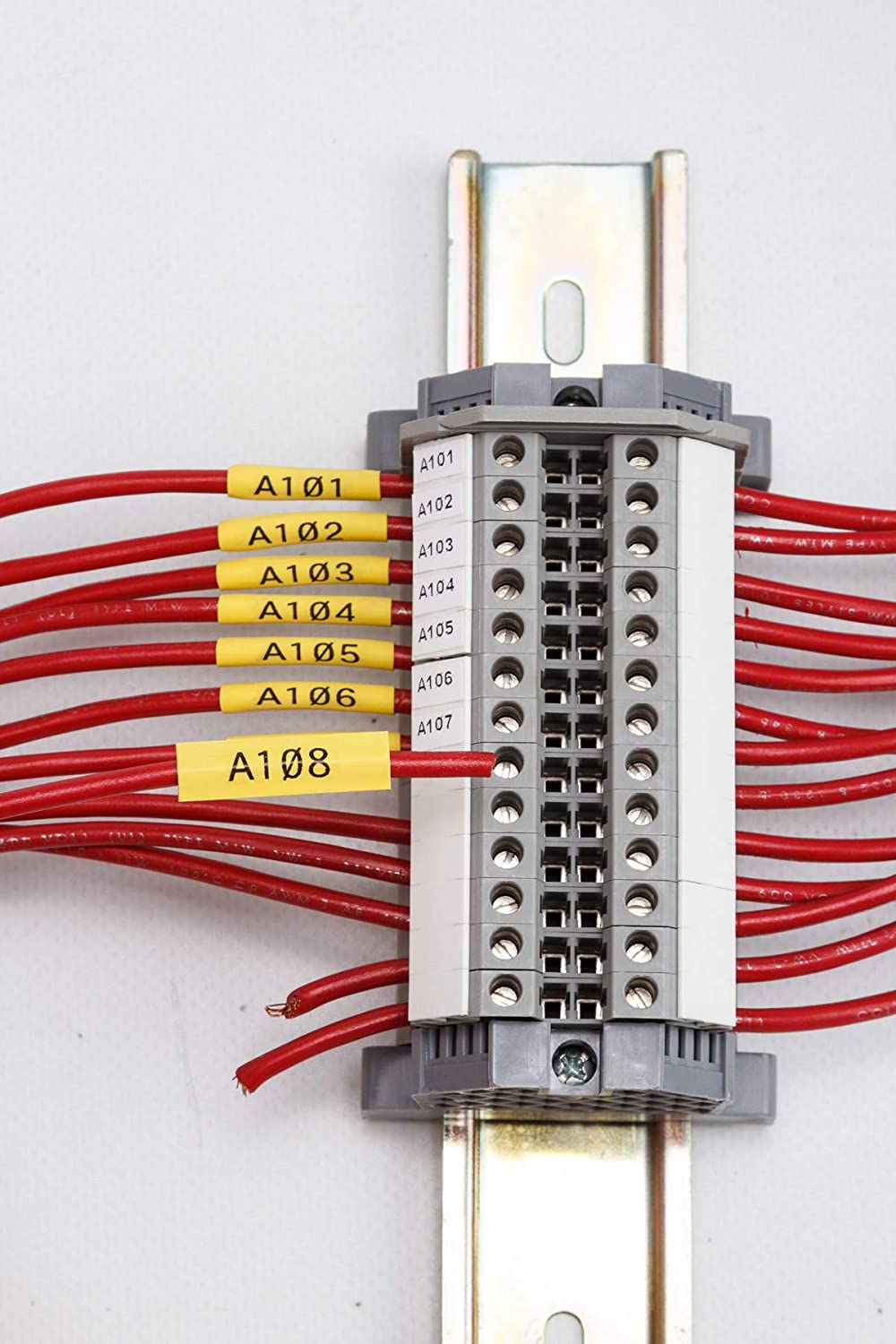

Special designed to meet the requirements of identification of wire
and cables. It is made of halogen-free flame retardant polyolefin
with excellent electrical, physical, chemical and printing properties.
It can be printed by marker printers with permanent identification.
D-marking125 meets the requirements of RoHS, Reach, IEC61249
-2-21 and EU2002/72/EC standards.
Features
Shrink ratio 3:1, 2:1
Flexible, Halogen-free flame-retardant. Easy to be printed.
Excellent printing property, permanent identification, SAE AS81531 applicable.
Excellent electrical, physical, chemical and printing properties.
RoHS and REACH compliant
Operating temperature range:
Operating temperature: -55°C ~ 125°C
Minimum shrink temperature: 70°C

Minimum fully recovery temperature: 110°C

Approvals:
UL224 125°C 600V
SAE AS 81531, MIL-STD-202

Technical Data

Property	Requirement	Test method	Typical Data
Longitudinal   shrinkage	≤10%	ASTM D 2671	≤5%
Tensile  strength	10.4 MPa min.	ASTM D 638	≥12MPa
Elongation  at  break	200% min.	Min.1014 Ω·cm	≥400%
Elongation   after   ageing(175°C,168hrs)	100% min.	ASTM D 638	≥300%
Heat shock	No crack	ASTM D 2671	No crack
Low-temperature flexibility(-55°C，4hrs)	No crack	ASTM D 2671	No crack
Dielectric voltage withstand	2500V,60sec, no breakdown	ASTM D 2671	No breakdown
Dielectric strength	19.7 KV/mm min.	ASTM D 2671	≥25 KV/mm
Volume resistivity	1014Ω ·cm min.	ASTM D 876	≥1014Ω·cm
Corrosion	No corrosion	ASTM D 2671	No corrosion
Flammability	Self-extinguishing within 1 minute	AMS-DTL-23053	pass
Printing performance	50 rubs, legible 30 strokes, legible	Φ2.5	pass
Fluid resistance (23°C，24hrs)	Printing legible	Φ3.0	pass

Dimensions

Size		Size As Supplied (mm)	Size After Recovery(mm)	Recommended Use range (mm)	Ladder Type pcs/pack	Continue length m/spool
Inch	mm	Inside Diameter Min.	Inside Diameter Max.
3:1
3/32	Φ2.4	2.4	0.8	0.9-2.0	250	100
1/8	Φ3.2	3.2	1.1	1.1-2.7	250	100
3/16	Φ4.8	4.8	1.6	1.8-4.1	250	100
1/4	Φ6.4	6.4	2.1	2.3-5.5	250	100
3/8	Φ9.5	9.5	3.2	3.5-8.1	250	100
1/2	Φ12.7	12.7	4.2	4.6-10.8	250	100
3/4	Φ19.1	19.1	6.3	7.0-16.3	250	100
1	Φ25.4	25.4	8.5	9.3-21.6	250	100
2:1
3/32	Φ2.4	2.4	1.2	1.3-2.3	250	100
1/8	Φ3.2	3.2	1.6	1.7-3.1	250	100
3/16	Φ4.8	4.8	2.4	2.5-4.7	250	100
1/4	Φ6.4	6.4	3.2	3.3-6.3	250	100
3/8	Φ9.5	9.5	4.8	4.9-9.0	250	100
1/2	Φ12.7	12.7	6.4	6.6-12.0	250	100
3/4	Φ19.1	19.1	9.5	10.0-18.5	250	100
1	Φ25.4	25.4	12.7	13.0-24.5	250	100
1.5	Φ38.1	38.1	19.1	21.0-37.0	250	50
2	Φ50.8	50.8	25.4	27.0-48.0	250	50

Notes:

Other sizes are available upon request.
Standard color: White or yellow
Other colors are available upon request.
